Terminal size :ph2.0

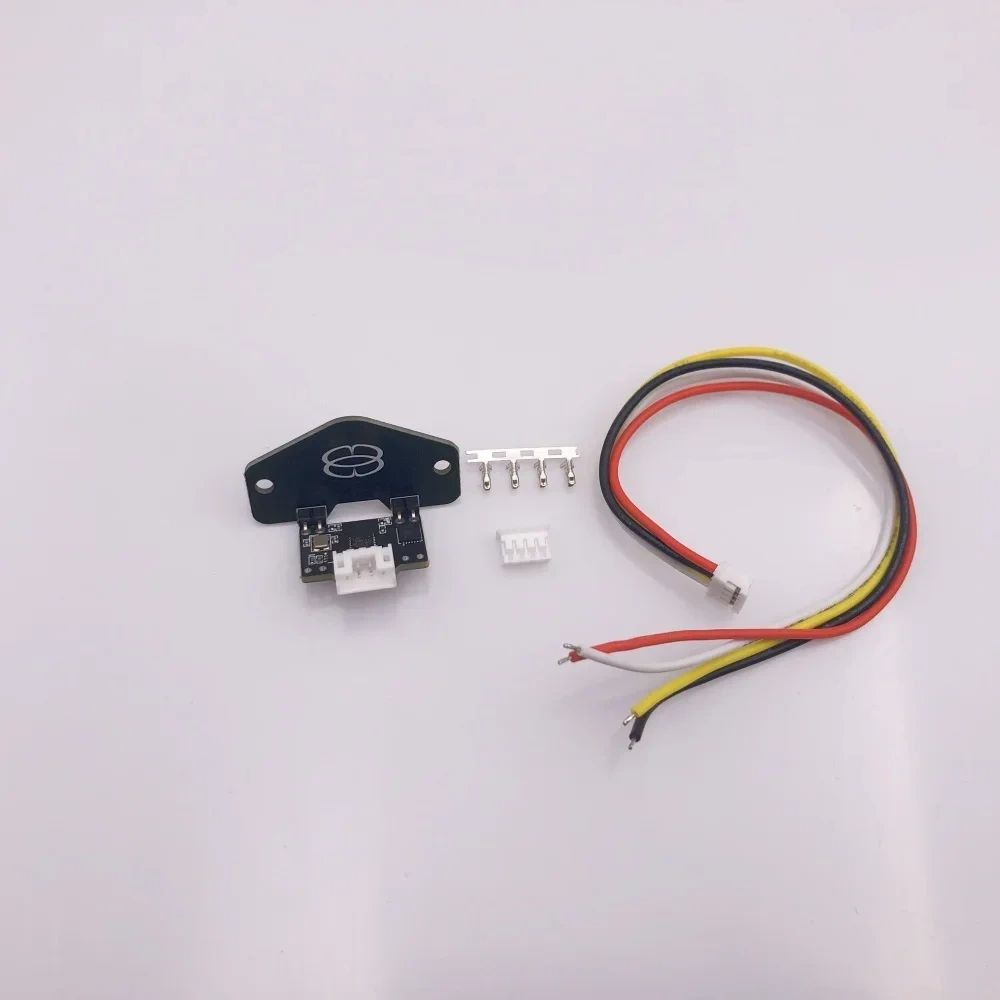

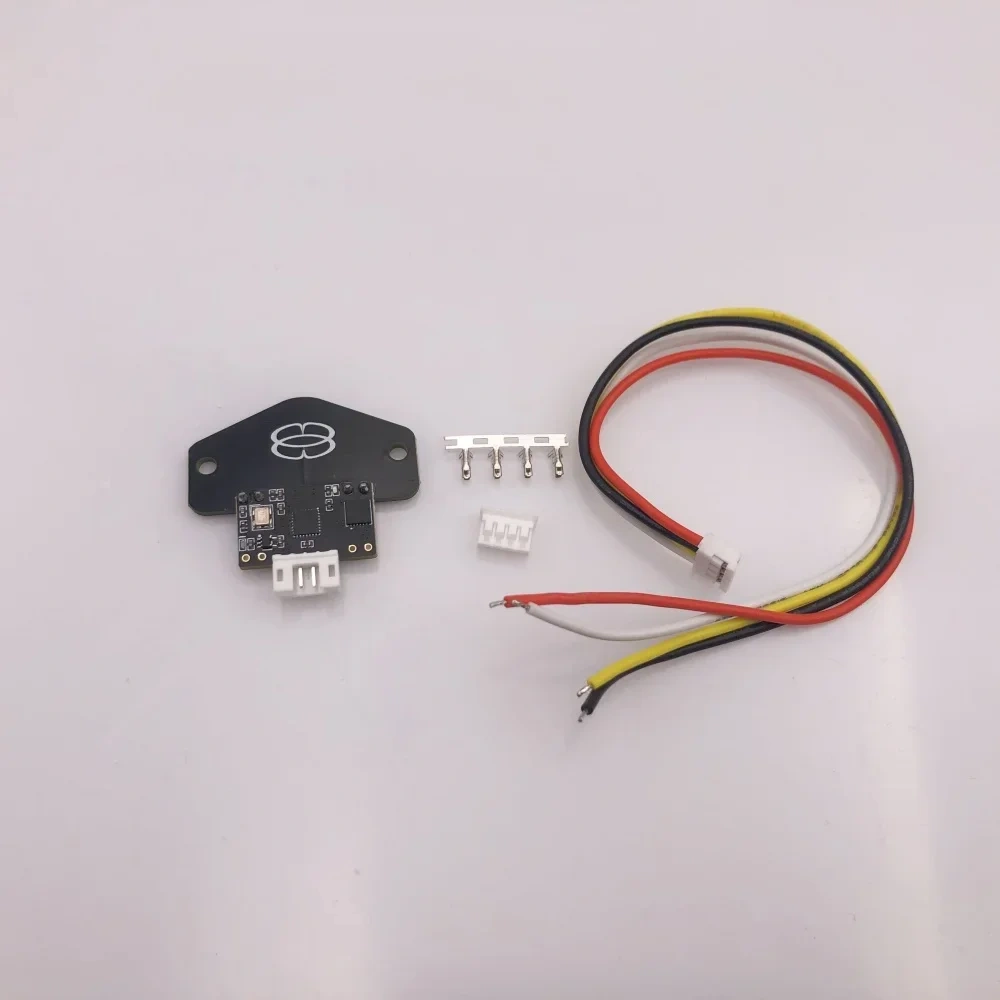

Cable is option for you.
Only work for klipper.
The idm CAN Version is compatible with the mellow utoc and it works really well.
Note:1)The IDM Board does not work in armbian systerm
2) The IDM is different from the Beacone.Please do contact us for instruction and read it before assembling.
3) The chipset or the max operation temperature of IDM Probe is 85 degree.

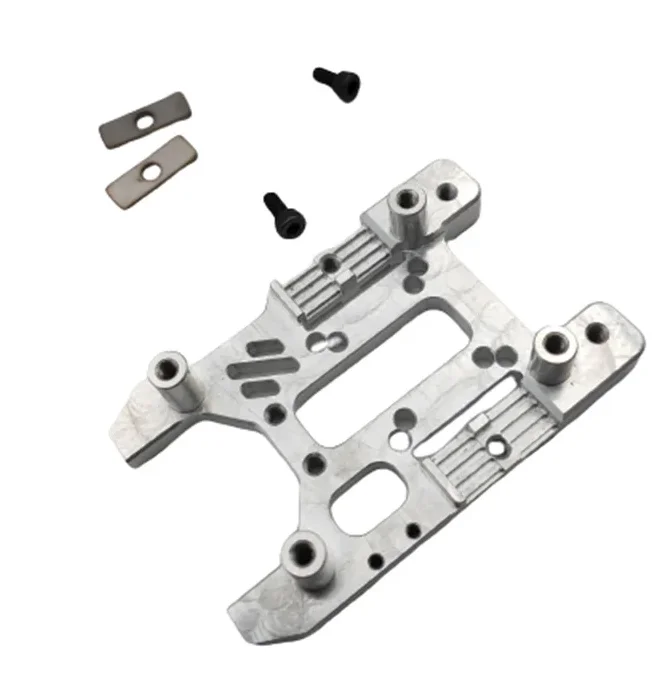

You can check below link for IDM Carriage .
Funssor Voron 2.4 trident CNC aluminum ultra weight X carriage black/silver color for Stealthburner IDM levelling - AliExpress
FAQ for the item:
Q1)hi...the sensor with which plates doesn't work with neodymium magnets?? Does it work with the PEI mat plus magnet??
A1)The sensor doesnot work for plate with embedded magnes and Non Metal plate like Glass bed.It work with PEI Coated plate plus Magnet Tape Or PEI Spring Plate plus Magnet Tape.
Q2how do I set up the IDM scanner? does it use the same software as the beacon probe?
A2)It doesnot use same software as the beacon probe.Please kindly contact us for Instruction after purchase .
Q3)Whether CAN module include lis2dw chip?Can I use CAN idm module with 24 volts?
A3)The CAN module include lis2dw chip.For safty,it only supports 5V.
Q4)what are the distance bettwin nozze and idm scanner? A4) The distance recommended is 3MM
Q5)Is this a model that can measure resonance?
A5)Yes,it can measure resonance.
Q6)Hello. Is there ADXL on the IDM CAN board?
A6)The IDM Board includes lis2dw instead ADXL
Q7)Is the CAN Version board already flashed with canboot?
A7)Yes, it is already flashed with canboot

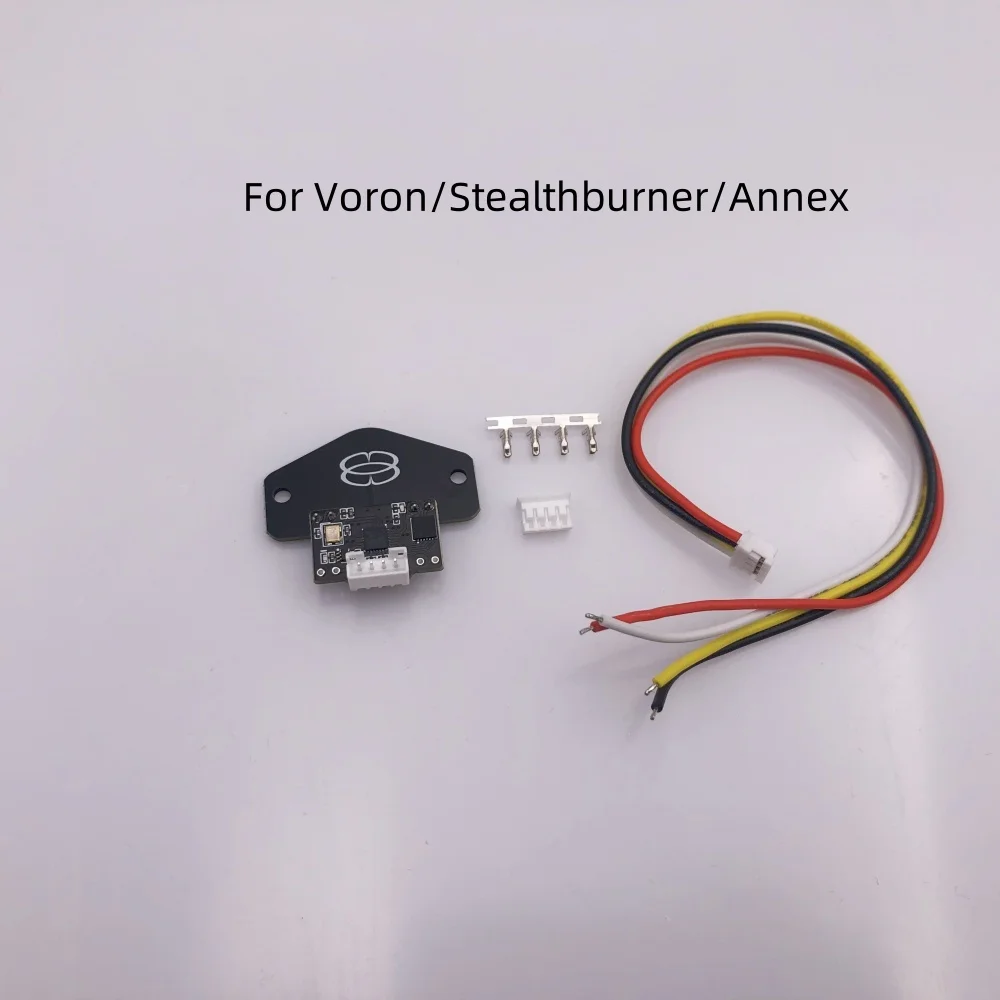

For Voron :

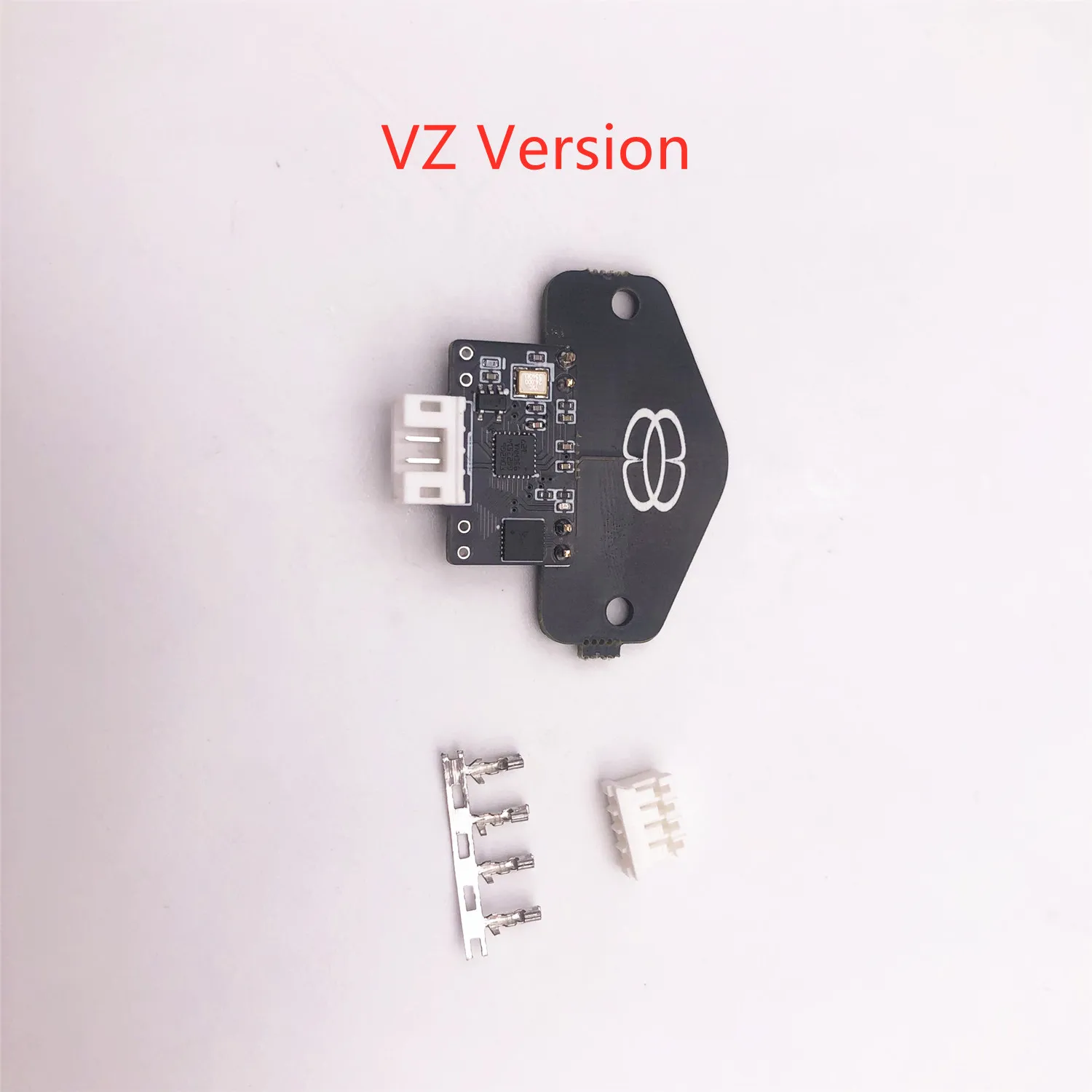

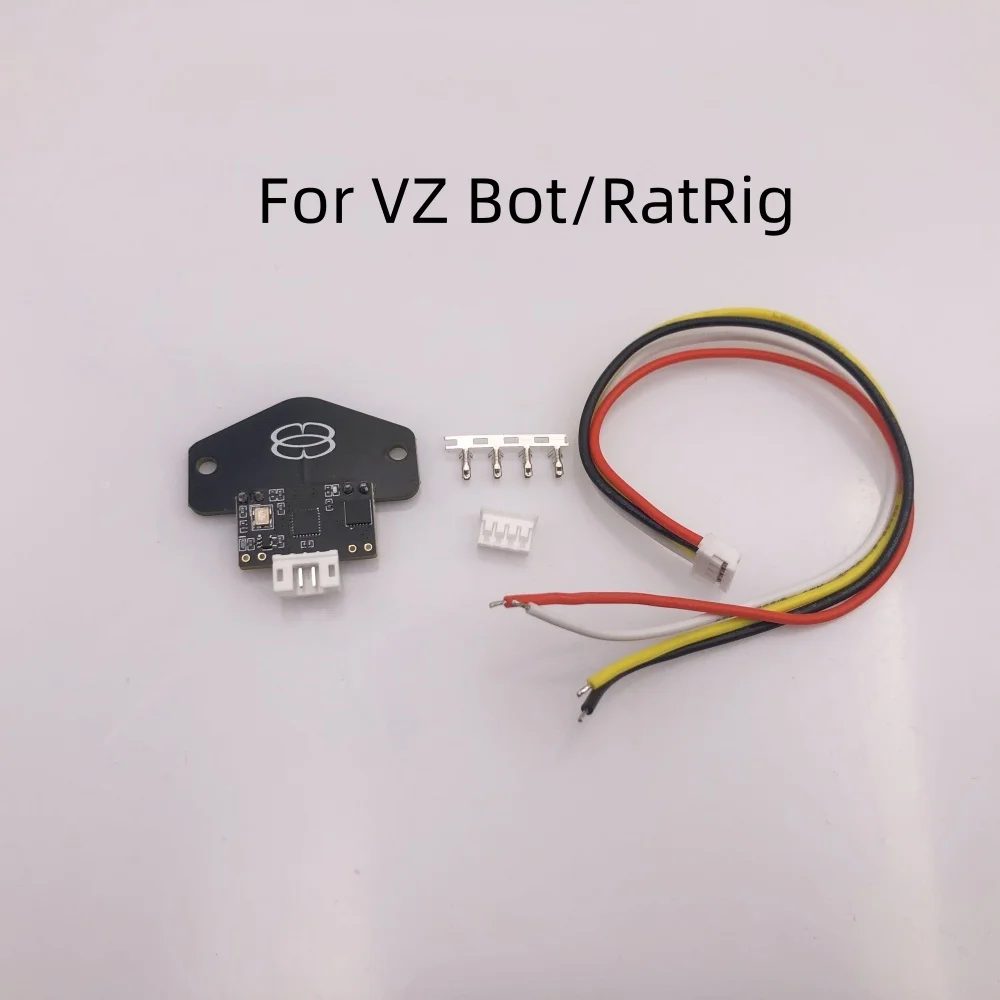

For VZ:
