Thanks for the effort made by MFBS For more information about the kit,please check below link
The designer has a slightly custom enclosed 2.0 and it is compatible with that
The Full kit includes screw kit as below
8 x countersunk screws M5 x 55mm
2 x countersunk screws M5 x 27.5mm
4 x countersunk screws M5 x 11.75mm
4 x button head screws M3 x 12mm
6 x button head screws M3 x 7.8mm
5 x Hex Locking Nut M5
6 x M3 heat inserts
4 x Aluminium Spacer 5 ID x 8 OD x 43 mm
2 x Aluminium Spacer 5 ID x 8 OD x 29 mm
2 x Aluminium Spacer 5 ID x 8 OD x 16 mm
2 x Aluminium Spacer 5 ID x 8 OD x 13 mm
2 x Aluminium Spacer 5 ID x 8 OD x 10 mm
Extra Hardware required for Left Motor mount BOM
4 x Cap head screw M6 x 50mm
1 x Cap head screw M6 x 12mm
2 x Cap head screw M5 x 45mm
1 x Cap head screw M5 x 85mm
2 x Countersink Screw M3 x 40mm
6 x Countersink Screw M3 x 6mm (motor mounts)
1 x Mini Precision shim 8 OD x 5 OD x1mm
1 T-Nut Drop in for 3030 extrusion
1 x Hex Locking Nut M5
4 x Aluminium Spacer 6 ID x 10 OD x 30 mm
1 x Aluminium Spacer 5 ID x 8OD x 14mm
2 x Aluminium Spacer 5 ID x 8OD x 10mm
6 x Aluminium Spacer 5 ID x 8OD x 4mm
2 x Aluminium Spacer 3 ID x 6 OD x 30mm
6 x Ball Bearing F695ZZ
2 x Ball Bearing 695ZZ
1 x Timing Pulley 2GT-20T
Extra Hardware required for Right Motor mount BOM
4 x Cap head screw M6 x 50mm
1 x Cap head screw M6 x 12mm
2 x Cap head screw M5 x 45mm
1 x Cap head screw M5 x 85mm
2 x Countersink Screw M3 x 40mm
6 x Countersink Screw M3 x 6mm (motor mounts)
1 T-Nut Drop in for 3030 extrusion
1 x Hex Locking Nut M5
4 x Aluminium Spacer 6 ID x 10 OD x 30mm
1 x Aluminium Spacer 5 ID x 8OD x 17mm
2 x Aluminium Spacer 5 ID x 8OD x 10mm
5 x Aluminium Spacer 5 ID x 8OD x 4mm
2 x Aluminium Spacer 3 ID x 6 OD x 30mm
6 x Ball Bearing F695ZZ
2 x Ball Bearing 695ZZ
1 x Timing Pulley 2GT-20T
Attention:
F695 and 695 bearings are not included,you can use the ones in your printer

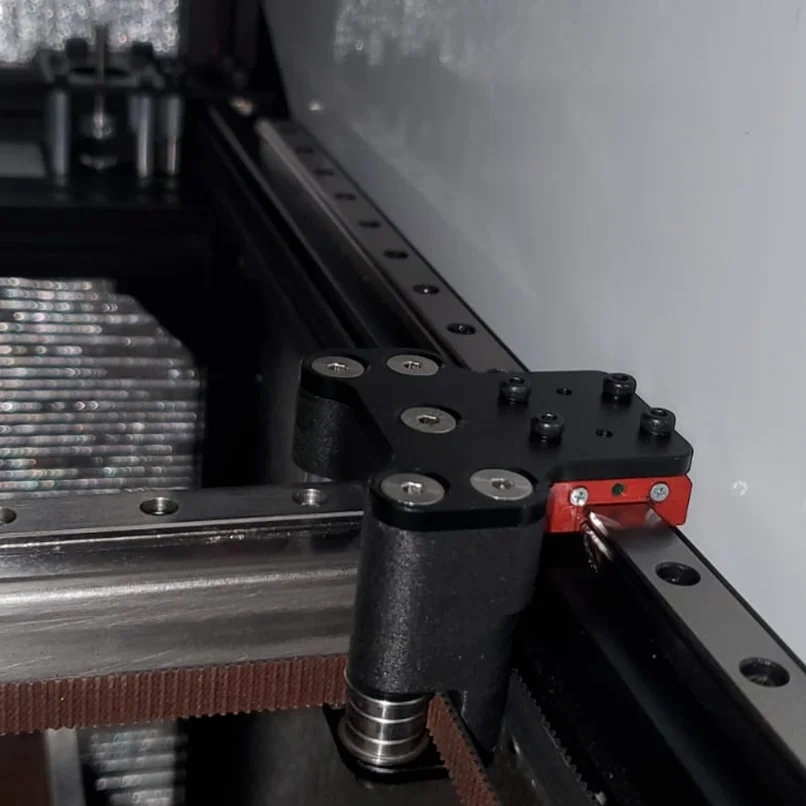

Working Show images shared by MFBS:
